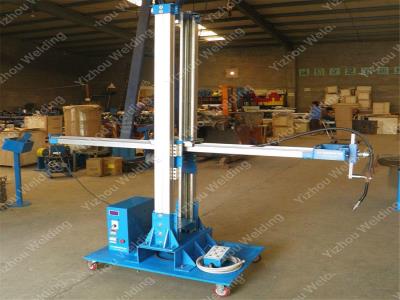

Product Name:Light duty welding manipulator
Product No.:
YZH-1010
Tel:86-510-83051530
E-mail:info@yizhouhj.com
Add:Shengli Road, Yangshan
Industrial Park, Huishan District, Wuxi City, Jiangsu Province, China
Fax:86-510-83051530
YZH-1010
According to boom load capacity,welding manipulator is divided into light duty,medium duty,heavy duty,super heavy duty.
welding manipulator has four different structurres,they are base stationary type,trolley moving type,base stationary with column rotation type,trolley moving with column rotation type.
Boom retraction sag 2mm/m;all of the welding manipulators has the anti-fall device,safe and reliable.
Cross slider device is at the boom end,it can be controlled by remote control box.
Guiding roller shaft is eccentric shaft,it can adjust the gap between the roller and rail.
Column rotation has manual type and electric rotation type two types.and both of two types has locking devices after rotating to the required position.
Electric part consists of electric cabinet and remote control box,and it can match with the welding rotators and welding manipulators.
Model | Light duty(YHL) | Medium duty(YHM) | Heavy duty(YHH) | Super duty(YHS) |
YHL-a×b | YHM-a×b | YHH-a×b | YHS-a×b | |
Effective elevation stroke(a) | 1.5m,2m,2.5m,3m | 3.5m,4m,4.5m,5m | 5.5m, 6m,6.5m,7m | 6m,6.5m,7m,7.5m,8m |
Effective elevation stroke(b) | 1.5m,2m,2.5m,3m | 3.5m,4m,4.5m,5m | 5.5m,6m,6.5m,7m | 6m,6.5m,7m,7.5m,8m |
Elevation speed(mm/min) | 1000 | 1650 | ||
Retraction speed(mm/min) | 120-1200 | 50-1000 | ||
Min. distance between boom lower surface and rail(mm) | 740(trolley moving with column rotation) 690(base stationary with column rotation) | 1109(trolley moving with column rotation) 972(base stationary with column rotation) | 1109(trolley moving with column rotation) 1090(base stationary with column rotation) | 1226(trolley moving with column rotation) 1180(base stationary with column rotation) |
Max. allowable load of boom front end(kg) | 80 | 120 | 200 | 400/600 |
Column rotation way | Manual/electric | Electric(±180°) | ||
Trolley moving speed | Manual | 1700 | 2500 | 2500 |
Rail span | 1000 | 1730 | 2000 | 2500 |
Trolley locking device | √ | √ | √ | √ |
Rotation locking deveice | √ | √ | √ | √ |
Operation chair | × | ×(optional) | √(optional) | √ |
Remote control box | √ | √ | √ | √ |
Flux recycle and transport system | √(optional) | √ | √ | √ |
Welding head 90°turning device and locking device | √ | √ | √ | √ |
Welding seam automatic tracker | ×(optional) | ×(optional) | ×(optional) | ×(optional) |
Welding head cross slider | √ | √ | √ | √ |
